OMRON E5CC E5CC-B E5CC-U Digital Temperature Controller

Product Categories

Jinjiang Haina Machinery Co.,Ltd

Contact Now

Name: OMRON E5CC E5CCB E5CCU Digital Temperature Controller
Brand: OMRON
Price: 1 USD

Brand Name : OMRON

Model Number : E5CC/E5CC-B/E5CC-U

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 600 Sets per 1 Month

Delivery Time : 10 work days

Packaging Details : Packed by international standard, anti-rusty treated and wrapped film packing.

Power supply voltage : A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC

Operating voltage range : 85 to 110% of rated supply voltage

Power consumption : 5.9 VA max. at 100 to 240 VAC, and 3.2 VA max. at 24 VAC or 1.8 W max. at 24 VDC

Setting method : Digital setting using front panel keys

Storage temperature : −25 to 65°C (with no condensation or icing)

Installation environment : Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

Contact Now

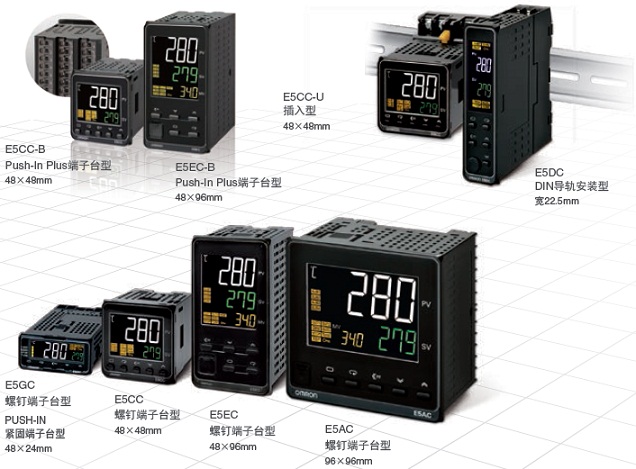

Digital Temperature Controller Diaper Machine Spare Parts OMRON E5CC/E5CC-B/E5CC-U

Greater downsizing and higher performance in control panels and other equipment

Greater efficiency from designing toassembly and operations

Saves your work in each process from designing to operation of control panels and other equipment.

Innovating control panel and equipment usability

Specifications Ratings

Power supply voltage		A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range		85% to 110% of rated supply voltage
Power consumption		Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or 1.6 W max. at 24 VDC All other models: 6.5 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC
Sensor input		Temperature input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C Analog input Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V,or 0 to 50 mV (The 0 to 50 mV range applies to the E5CC-U only for those manufactured in May 2014 or later.)
Input impedance		Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method		ON/OFF control or 2-PID control (with auto-tuning)

Product Tags:

E5CC Digital Temperature Controller
